1.Introduction Hydraulic and pneumatic equipment hydraulic and pneumatic equipment sensor electronic scale displacement sensors ; General WYC rod series linear displacement sensor for accurate measurement of displacement or length. Measuring stroke 75mm ~ 1250mm, both ends 4mm back; Punch stroke, linear precision 0.1% ~ 0.04% FS, repeatability ¡À 0.013mm. Ensure the structural design of the sensor easy to install, solid and reliable. Shell conducted;

The anodizing, beautiful appearance, corrosion resistance, built-conductive plastic measuring unit, drift-free, long life, to ensure smooth operation. Seal Protection class IP67, DIN430650 silver plated socket for a wide range of signal transmission more stable rod ball with a 0.5mm automatic centering function, the company imported from abroad dedicated linear;

Engraved repair system, repair lithography resistance not only to meet your linearity requirements, and can modify the size of the moment resistance value according to customer requirements. Features Long life - running times of up to 10 ¡Á 106 times; Excellent linearity; Higher resolution than 0.01mm; High operating speed; DIN430650 standard plugs and sockets; Protection class IP67;

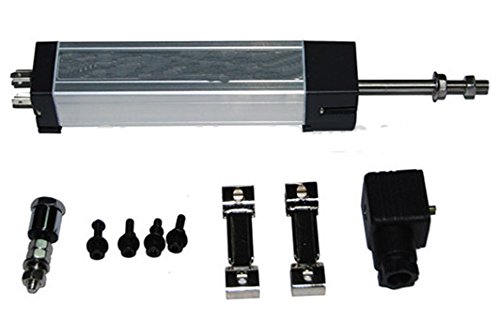

Description Anodized aluminum casing; Fixed bracket assembly withhold; Stainless actuator, rotatable; Bearing slewing bearings; Conductive plastic resistance element; More shock precious metal brush brush assembly with elastic damping; Electrical connections DIN43650 standard 4-pole socket silvered; When the shipment contains a free outlet GDM3009; A gasket GDM3-16; 2 fixation and four screws;
