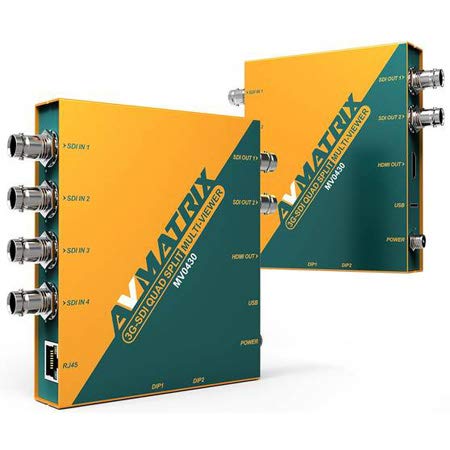

The Lilliput AVMATRIX MV0430 is a 4 Channel 3GSDI Quad Split Multiviewer designed with the user in mind The MV0430 has four SDHD3GSDI inputs with auto adaptive detection plus 2 SDHD3GSDI outputs and a single HDMI output with a total of 11 user defined output formats from 720p25 to 1080p60 Field adaptable the MV0430 provides you with 16 group preset layouts in full screen or multiview mode including the most frequently used choices like quadsplit full screen triple windows PIP and PoP More user friendly features abound like the ability to set a 13 character UMD overlay in each individual window and then adjust its size and position with ease The same holds true for the size and position of the 2 channel Audio Meter thats user defined as well Functions and settings are finger adjustable using the easy control dip switches on the units side or can be remotely set by PC via the LAN port The LAN port also makes firmware updates a snap theres a USB port for keyboard control a threaded locking power connector and a detachable bracket for wall mount Features. 4xSDHD3GSDI inputs with auto detection. 2xSDHD3GSDI and 1XHDMI outputs for multiview. 16 preset layouts both full screen and multiview modeIncludes. SC2031 x1. Bracket x2. Power Adapter x1. Micro USB Cable x1Specifications. Operating Temperature 20C 60C HDMI output for 0C60C. Storage Temperature 30C 70C. Sdi Video Input SDHD3GSDI75O x4. Sdi Video Output SDHD3GSDI75O x2
